EU Stock MCWlaser Fiber Laser Marking Engraver 50W & Lathe Chuck Max Raycus Fiber Laser Engraving Machine

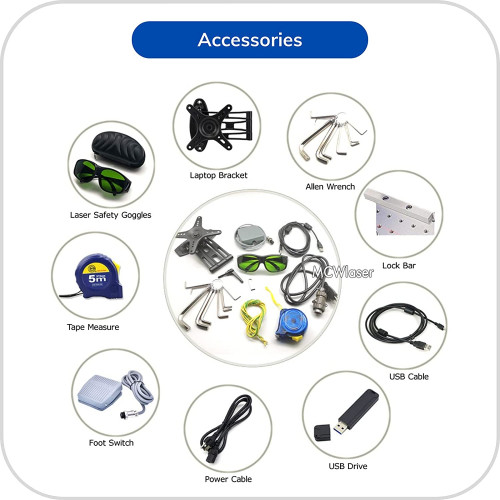

• MCWlaser fibre laser engraver for industry and business. Power: 50W/220V Engraving Area: 220x220mm (8.7"x8.7"). Package includes fibre laser engraving machine, convenient 8-piece tool set and professional laser goggles (CE certificate)
• Raycus/Max laser source. Lifetime 10,0000 hours, 2-year warranty and free replacement for laser source within warranty period. Manual and operation video in English are provided.

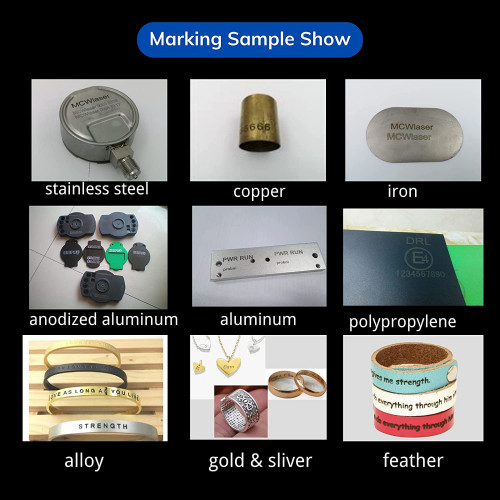

• Application material: Mainly used for metal material (typical: steel, stainless steel, silver, copper, alloy, aluminium, etc.); part non-metal material (typical: plastic, ceramic, leather, etc.); not sure, contact with us
• EZCAD software included. Supports Windows XP, Win7, Win8, Win10 (32bits and 64bits). It can be compatible with software Coreldraw, AutoCAD, Photoshop; it also supports file formats such as PLT, PCX, DXF, BMP, etc.
• Tamaño:50W(220x220mm/8.7"x8.7")+Rotary Chuck

Detalles técnicos

• Fabricante	‎Shanghai Top Nine Industrial Co.,Ltd
  Tamaño	‎50W(220x220mm/8.7"x8.7")+Rotary Chuck

Descripción del producto

Feature:

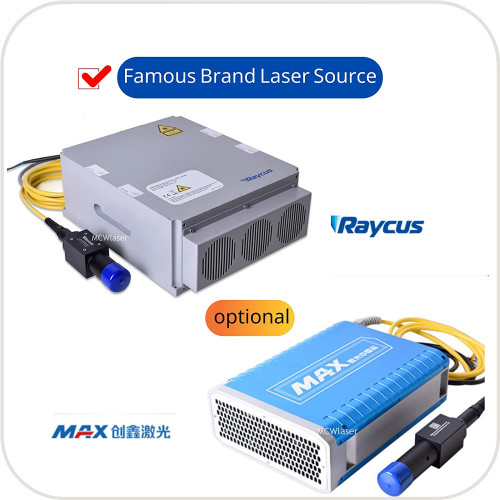

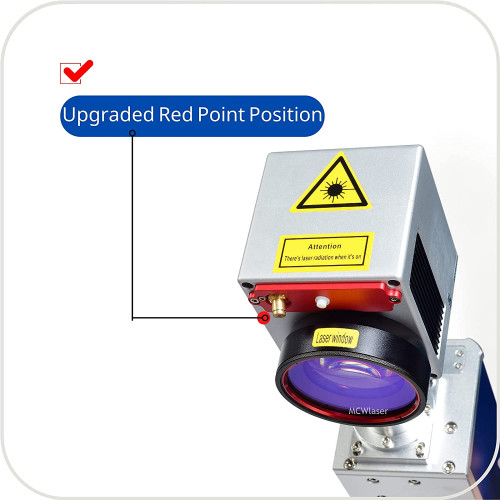

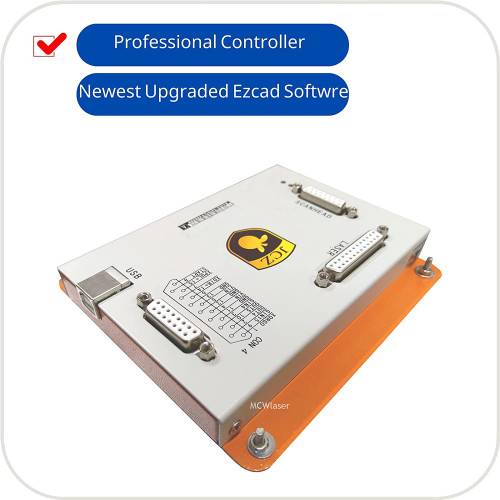

• 1. Famous laser source Raycus/Max Advanced Beam Quality; Stable Power Output and Higher Marking Speed; Long Service Life 100,000 Hours; Free Replacement within 2 Years 2. Reliable Galvanometer High Precision; High Engraving Speed; High Efficiency; Long Life Span. 3. Stable F-theta Lens Energy Uniformity and Little Attenuation,Small Focus Spot; Deep Edge Marking, Various Working Area Optional 4.Newest Upgraded controller and software Win7/8/10/XP Compatible; Coreldraw, AutoCAD, Photoshop Compatible ;Multi-language User Interface, Easy to Operate. 5. Upgraded Red Point Position Correct the Working Distance Without Any Tools; Easy to Work. 6.High Quality Material High Quality Alloy Material; Stable Structure; Friendly Switch Button; Built-in Air Cooling

Application：

Technical Parameter

• Working Voltage 220V, 50Hz Cooling Mode Air Cooling Laser Wavelength 10.64 um Frequency of Pulse 50~100 KHz Marking Depth ≤0.5mm Marking Speed ≤275.6in/s Beam Quality M2<1.6 Minimum Line Width 0.01 mm Minimum Character 0.15 mm Repeatability Accuracy ±0.002 mm Resolution Ratio 0.1 mm Operation System Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 Supported File Format PLT, PCX, DXF, BMP,etc Control Software EZCAD ENGLISH Control Software Operation Temperature 0°C-40°C Unit Power ≤0.5 KW

Tips:

• About Power： ●20W: No depth requirement when engraving or marking ●30W: Normal engraving or marking (most widely used and most cost-effective) ●50W: For deep marking or engraving About working area: ●Normally, the default working area is recommended when we order the machine. ●For the same power machine, smaller working area gives higher precise and better marking effect. About Voltage： ●Ships the machine according to the default voltage in the receiving country of the order. US 110V; Europe 220V .
